Step 1: Scan QR Code above to Download Salto Homelok APP- You only have to do this once!
Scan the above QR Code to download the Salto Homelok mobile application on your Smart Device (phone or tablets, etc.)
- Scan the QR Code & Click "Download"
- Go into "settings" on your device (phone) and enable Bluetooth- if you don't you will receive a prompt to do so
- Open the APP and log in using your email
- Check your email inbox now for an email from Salto, open the email and click "Sign In"
- Select "allow" Salto Homelok to find Bluetooth devices
- You are all set to receive "Keys" (this is your credential for opening the lock using the APP)
Step 2: Here is how the lock works with the APP
Follow these steps in your Salto Homelok APP on your device (phone) to unlock and then lock things up:
- Open the APP and go to "My Keys" - this option is on the left hand side of the page
- The APP will start looking for any nearby padlocks
- Available padlocks within your proximity are displayed
- Select the lock you want to access
- Tap the back of your device (e.g. phone) to the Salto logo on the lock- the padlock looks like the one above!
- You will see a green indicator light turn on
- Turn the bottom barrel of the lock clockwise and the lock opens
- Before you leave, put the lock back on the gate hardware (e.g. chain) and lock it as you would any other padlock
Battery Replacement
Scan the above QR Code to watch a brief tutorial!

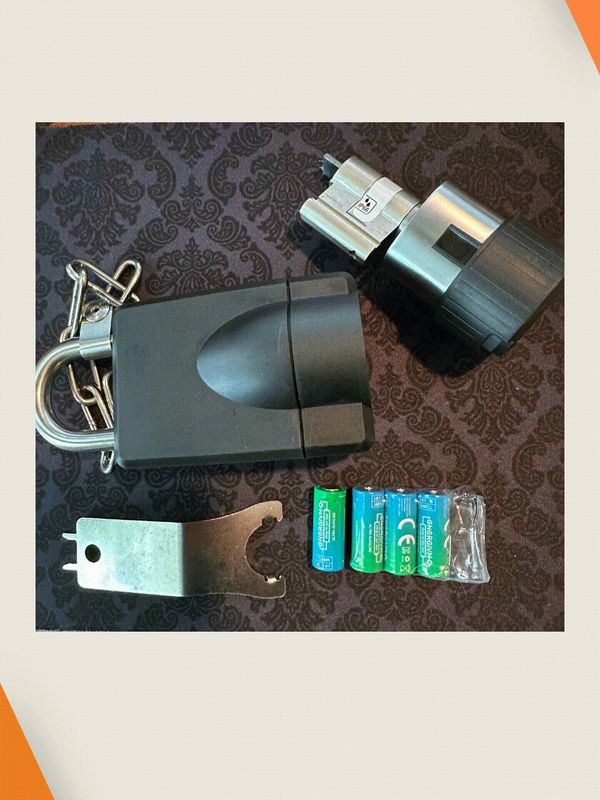

- Parts and Tools. Make sure you have your new alkaline batteries (four LR1 N-type/1.5V Alkaline batteries), the special Neo Installation Tool (SP225542), and a PH2 (Phillips #2) screwdriver IN HAND before going out to the site
- Opening the lock. Open the Homelok APP on your phone, hold your device (phone) next to the Salto logo on the lock, and then use your mobile digital key credential to open the lock
- Accessing the cylinder. Remove the lock from the gate, and using the PH2 (Phillips #2) screwdriver, place the screwdriver down inside the hole where the shackle sits and turn the Phillips head screw counter clockwise- hang on to the screw...DO NOT LOSE the little screw!
- Removing the cylinder. Pull down on the bottom of the lock to remove the cylinder
- Accessing the batteries. Place the Neo Installation Tool inside the grooves on the silver plate (see video) and turn counter clockwise. Pull up on the cylinder lock to remove it from the rest of the casing. The battery compartment is on the bottom of the cylinder and note the +/- for how to place the batteries. Remove the old batteries
- Insert the new LR1 batteries in the correct polarity (positive and negative sides match the diagram inside the compartment).
- Replace the cylinder back down into compartment. Use your index finger to hold the cylinder down tight into the compartment and place the Neo Installation Tool into the grooves on the silver plate this time turning the plate clockwise
- Put the complete cylinder back into the lock casing. Use your screwdriver and turn the small set screw which is down inside the shackle clockwise. Remember this is the screw you removed in Step 3 above
- Place the lock back on the gate and lock it by pressing down on the shackle
- Test the lock by using your device (phone) and the APP, closing and opening the shackle to ensure it operates normally.
.png/:/rs=w:1024,cg:true,m)

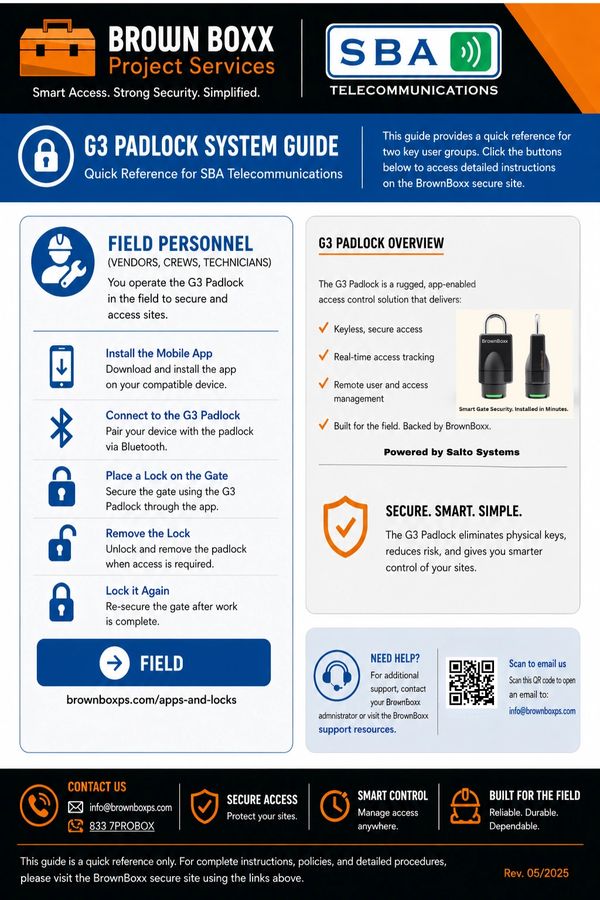

summary & one pager
Don't forget to scan the above QR Code to download the APP!
- Guide. Quick reference for the personnel in the field who need to access a site (tenants, maintenance personnel, etc.)
- Required. APP must be installed on your smart device (e.g. phone, tablet).
- Watch the tutorial and you will see a fast and easy demonstration for opening the lock.
- Call or email for help while on site by phoning 1-833-7PROBOX or emailing info@brownboxps.com.
- Don't forget to lock the gate when you leave and please note that a time and date stamp is captured on all entrants and exiting of the site.
